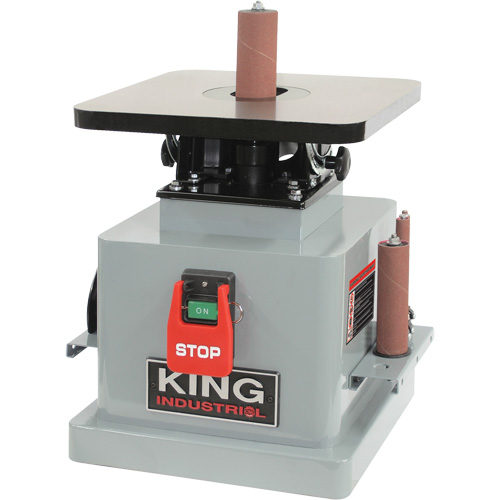

Oscillating Spindle Sander

Model: TS212

Mfr. No.:Manufacturer Model No.: KC-OVS-TL

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,139.00 / Each

Specifications
Description

Overall Width: 14-1/2"
Overall Length: 14"
Overall Height: 18-1/2"
Motor: 7.5 A, 110 V, Single Phase, 60 Hz
Spindle Speed: 1720 RPM
Table Size: 14 3/4" X 14 3/4"

Table may be tilted front downwards up to a maximum of 45¦ to allow the sanding of bevelled parts
Heavy-duty cast iron table is precision ground
Rubber drum can be fitted on bothends for full use of the entire spindle
Includes: 3 spindles (1/4", 1/2", 5/8"),2 drums (1 1/2" and 2"), plastic dust hood, 2" dust outlet and a graduated scale attached to table; ; Model No. TS212 ; Mfg. No. KC-OVS; Oscillations per minute: 100 ; Oscillations stroke: 1/2" ; Spindle drum diameter: 1 1/2" - 2" ; Spindle diameter: 1/4", 1/2", 5/8" ; Spindle speed: 1720 RPM ; Table size: 14 3/4" x 14 3/4" ; Motor: 7.5 A; Voltage: 110 V, single phase, 60 Hz ; Dimensions: 14" L x 14 1/2" W x 18 1/2" H; Shipping weight: 67 lbs.
